Square Digital Signage with/without Touch

Add your review

  • SRGB coverage gamut: 92%
  • Android remote control
  • Ultra high brightness 400-700 high brightness
  • The proportion of special display ratio (1:1) screen reaches more than 90%
  • Fourth class frame / ultra thin / ultra light / ultra narrow / design, easy to use and beautiful
  • Professional fog LCD screen, with brighter images and stronger three-dimensional sense.
  • The product has stable performance and supports 7 * 24-hour uninterrupted work
  • Plug in USB flash disk to play. The USB flash disk is encrypted, and the inserted USB flash disk isautomatically copied to the local storage for video / picture playback
  • Touch screen function is optional

Place of Origin: Shenzhen, China
Brand Name: FVASEE
Certification: CCC,FCC,CB,CE,ROHS,ISO9001,etc.
Model Number:

Minimum Order Quantity: 1 Piece
Price: $150.00 – $9900.00
Packaging Details: high quality 3cm thickness honeycomb box (air shipment standard)
Delivery Time: Shipped in 3 days after payment
Payment Terms: L/C, D/A, T/T, Western Union, etc.
Supply Ability: 2000 Piece/Pieces per Week


Add to compare
square view digital signage application in a retail store


Square View Digital Signage

FVASEE total solution digital signage system provides square view wall mounted signage display screens from 17 – 45″.


Square View Digital Signage

FVASEE total solution digital signage system provides square view wall mounted signage display screens from 17 – 45″.
Whether utilising digital screens as a monitor at a retail premises, showcasing what your business has to offer in hospitality or simply giving travellers information within the transportation industry, FVASEE digital signage is an ideal visual communication tool that simply works for all sectors. And as a wall mounted advertising display, it forms a complete advertising broadcast control system through terminal software control, network information transmission and multimedia terminal display. The original idea of the advertising machine is to change the advertising from passive to active, so the interactivity of the advertising machine makes it have many public service functions, and thus attracts customers to actively browse the advertisements.

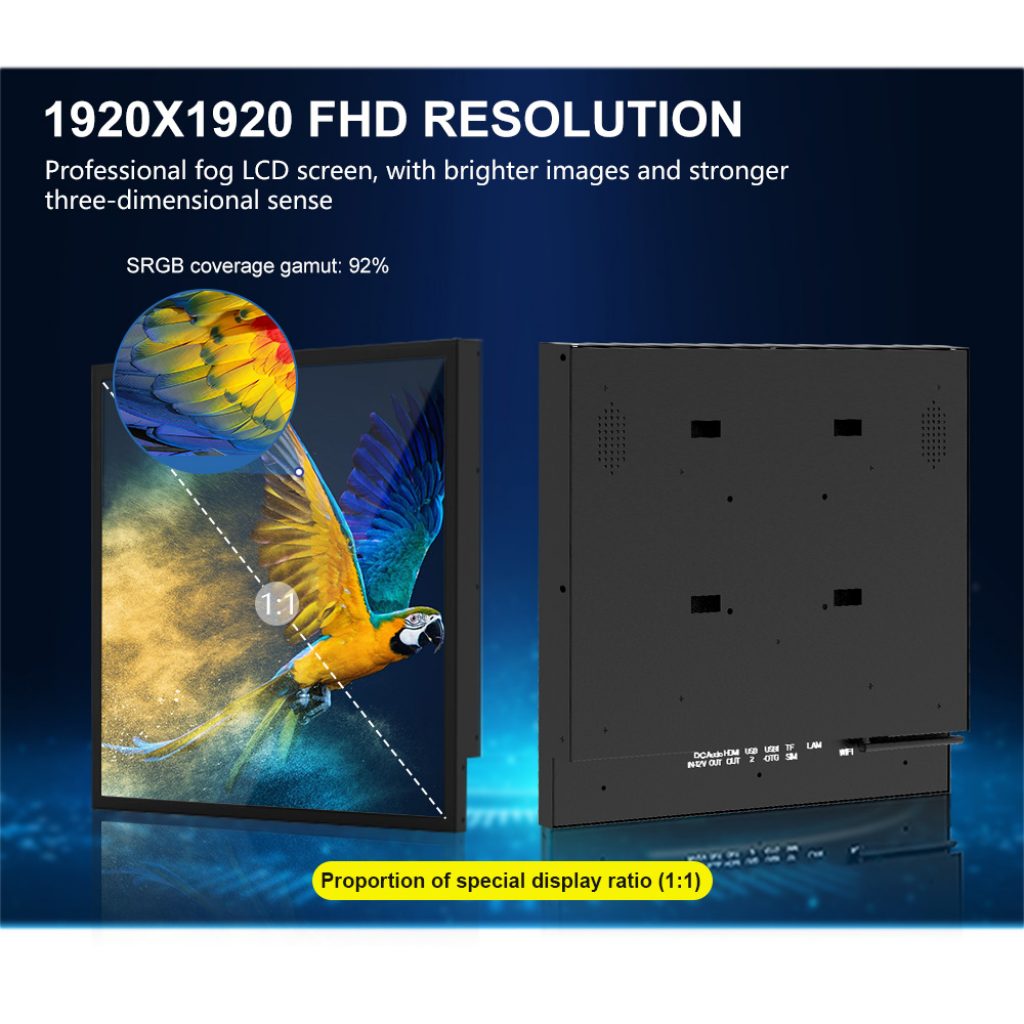

Professional fog LCD screen, with brighter images ands stronger three-dimensional sense. SRGB coverage gamut :92%

1920p digital signage


Our square digital signage support have many sizes from 17inch to 44.9inch.

Popular Applications

Digital signage is a sub-segment of signage. Digital signs use technologies such as LCD, LED and Projection to display content such as digital images, video, streaming media, and information. They can be used in public spaces, transportation systems, museums, stadiums, retail stores, hotels, restaurants, and corporate buildings etc, to provide wayfinding, exhibitions, marketing and outdoor advertising.

square digital signage application

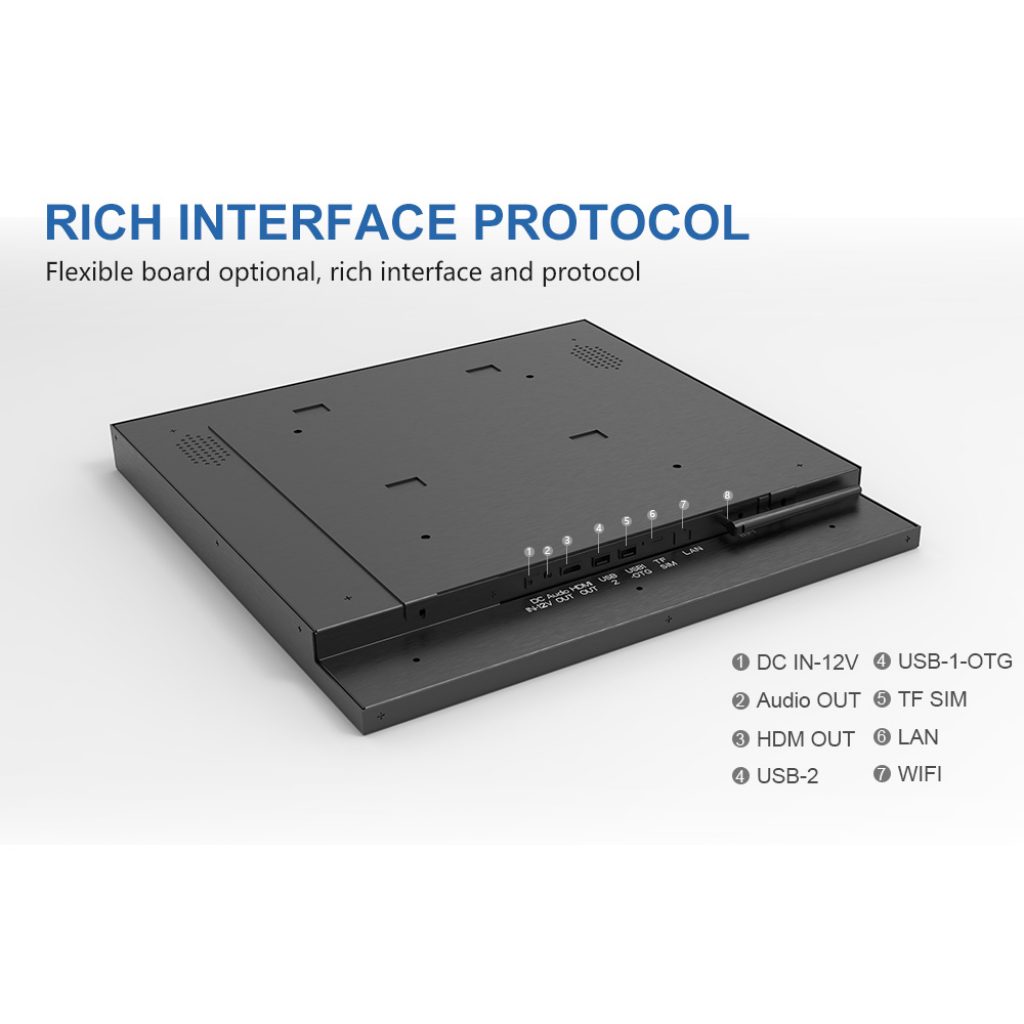

FVASEE square digital display has rich interface protocol , include

  1. DC IN- 12V
  2. Audio out
  3. HDMI out
  4. USB-2
  5. USB-1-OTG
  6. TF-SIM
  7. LAN
  8. WIFI

Operating system: Android , Windows or linux

Our floor standing digital signage series come with customized operating system, you can chose Android or Windows system according to your preference, with strong compatibility and stable performance, to meet all the needs of different scenarios.

⚙️ Specifications

Panel 17" 22" 26.5" 28.1" 33" 39.8" 44.9"
Model number OEM-ADSS1701 OEM-ADSS2201 OEM-ADSS2701 OEM-ADSS2801 OEM-ADSS3301 OEM-ADSS4001 OEM-ADSS4501
Display size(mm) 305.28×305.28 394.56×394.56 475.776×475.776 504.23×504.23 596.16× 596.16 714.2×714.2 806.42×806.42
Diagonal Aspect Ratio 1:01 1:01 1:01 1:01 1:01 1:01 1:01
Physical Resolution 1920*1920 1920*1920 1920*1920 800*800 1920*1920 1920*1920 1280*1280
Display Colors 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M
Viewing Angle H178%/V178° H178%/V178° H178%/V178° H178%/V178° H178%/V178° H178%/V178° H178%/V178°
Luminance(nits) 600cd/m2 500cd/m2 500cd/m2 700cd/m2 420cd/m2 700cd/m2 700cd/m2
Contrast 1000:01:00 1000:01:00 1000:01:00 4000:01:00 1000:01:00 4000:01:00 4000:01:00
Display color 16.7 million 16.7 million 16.7 million 16.7 million 16.7 million 16.7 million 16.7 million
SRGB coverage rate 96% 96% 96% 96% 96% 96% 96%
Response time 8ms 8ms 8ms 8ms 8ms 8ms 8ms
Life(hrs) more than 50000 more than 50000 more than 50000 more than 50000 more than 50000 more than 50000 more than 50000
Core Android 11.0 OS,RK 3568,2G RAM 16GB internal memory,1.8GHz CPU,H264 quick video decoding
Input &Storage
Control Method Wifi/RJ45,USB,CF,SD card Control,IR
Color System Support PAL/NTSC/SECA
OSD Language English/Chinese(Multiple Language can be  customized)
Rich Resolution Support 1080P,1080I,720P,480P &multiple resolutions
Video forma tsupport MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
Image format support JPEG/BMP/TIFF/PNG/GIF
Audio format support Wave/MP3/WMA/AAC
Splicing Display Support 1080P,1080I,720P,480P &multiple resolutions
Cooling Low noise fans

Specification: Square Digital Signage with/without Touch

Display Size

, ,


Android, Windows





🤝 Supports


User Manual download [PDF]


1.Q:I haven't done business with you before,how can i trust your company?
A: We are a 11-year OEM/ODM factory for digital touch system products.
what's more,we've got quite a lot authority certificates,for example,CE,CCC,UL,RoHS, ISO9001, ISO14001 certificates.

2. Q:what's the shipment terms and delivery time of your company?
A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly,
the shipment time is 3-8 working days after delivery.

For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and
Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.

3.Q:How long is the warranty time for your products?
A:We can offer 100% guarantee on our product. Our officially promised warranty time is one whole year after delivery at best.

4.Q: What are your advantages?
A: 1) We specialize in the research, production and sales ,so our price is reasonable and our service is professional .
2)10 fingers can write simultaneously on our IR touch screen display, built-in OPS PC, and free whiteboard software,
at the same time, owns CE ISO9001 ISO14001 3C CE certificates etc.
3)Low defectives and timely service. The defectives of our products seldom appear ,
if quality problem, we give spare part or new replacement free of charge.

5.Q:I would like to ask you if it's possible to have my logo on the product.
A:We hope you know that our company Fvasee perfectly support customized logo service. But, we also
hope you know that it's an extra-service,so a little bit extra service fee is needed.
