SPCC Industrial Touch Screen AIO Computer
- Support embedded,wall-mounted,rack-mounted,desktop,cantilever support
- Black or silver color optional
- IP65 grade water-proof,dust-proof for front panel
- Working temperature:-10-60°
- 365Days*24hours all-weather working
- Support boot strap with electricity
- 3mm bezel thin front panel,embedded cabinet suitable
- Aluminum alloy shell,good mechanical properties,better performance of heat dissipation
- Adopt industrial control HD LCD screen +LED backlight screen,highlight picture,perfect color
- Compatible with various industrial systems/application
- Support without touch,resistive touch,capacitive touch,lR touch
- Whole system is equipped with wifi module,more convennient
- Build-in 2.0 speakers,support 1080P HD video
- Interference funtion,CE-EMC certificated
- Complete machine triple protection: explosion-proof, flameproof, moisture-proof.
- Shock resistance standard reach GB2423,protection during transportation/working on the sea.
- Anti-static level of contact 4KV(customized MAX 6KV),air 8KV( customized MAX 16KV)
- Anti surge design,the machine is proper functioning during Instantaneous voltage rising into 280v
Place of Origin: Shenzhen, China
Brand Name: FVASEE
Certification: CCC,FCC,CB,CE,ROHS,ISO9001,etc.
Model Number:
Minimum Order Quantity: 1 Piece
Price: $150.00 – $9900.00
Packaging Details: high quality 3cm thickness honeycomb box (air shipment standard)
Delivery Time: Shipped in 3 days after payment
Payment Terms: L/C, D/A, T/T, Western Union, etc.
Supply Ability: 2000 Piece/Pieces per Week
FVASEE
Square View Digital Signage
FVASEE total solution digital signage system provides square view wall mounted signage display screens from 17 – 45″.
FVASEE
Square View Digital Signage
FVASEE total solution digital signage system provides square view wall mounted signage display screens from 17 – 45″.SPCC Industrial Touch Screen Computer
1. CPU
Intel Celeron Quad-core J1900 CPU 2.0CHZ
Intel H81 Motherboard with Intel Core I3CPU
2. The Memory DDR3:
4G/8G…Can be customized.
3. Storage Hard disk:
128G/256G/512GSSD, 500G/1T HHD…can be customized.
4. Operating system:
Support X86/Win7/8/10/ Linux{Linux Ubuntu} (32Bit, 64Bit);
5. Projected Capacitive 10-point Multi Touch.

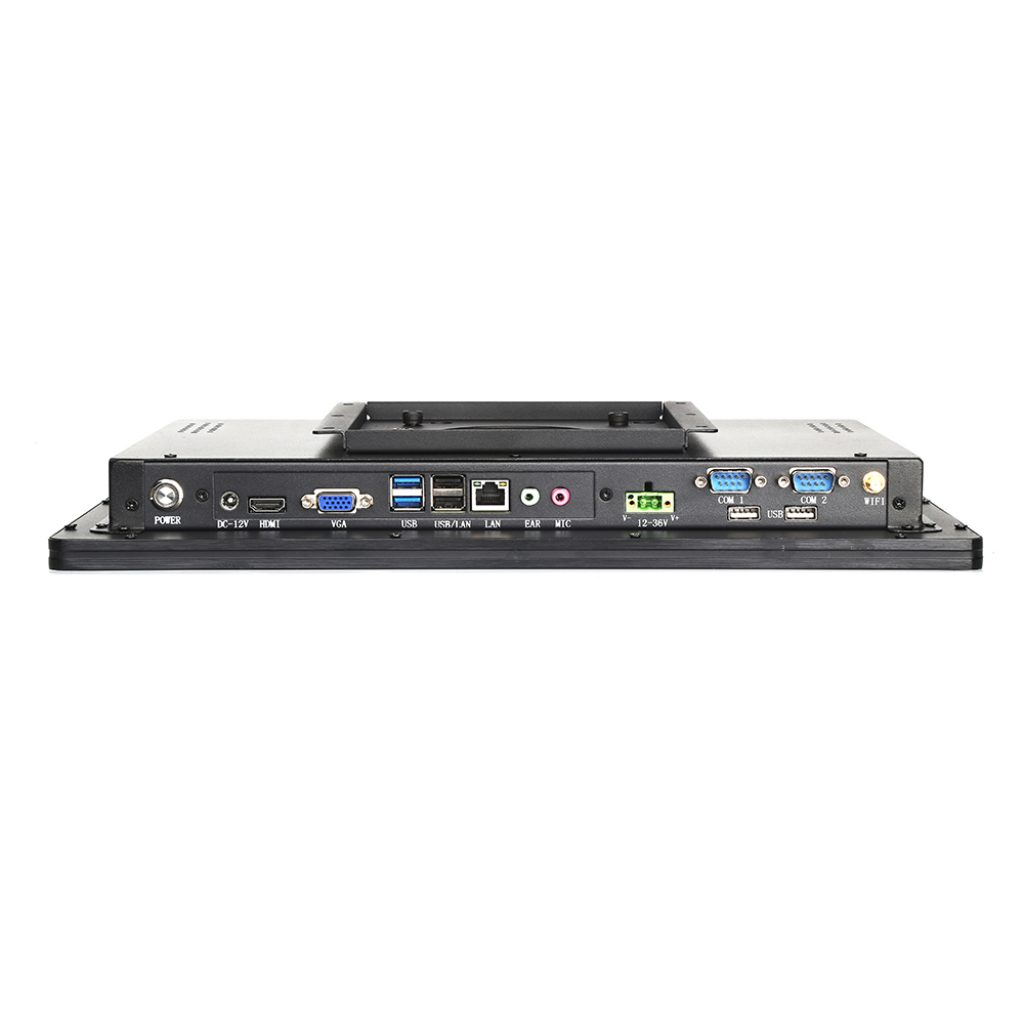

Rich interface design, support RS232, RS485, USB, 100M Ethernet and other interface.
Cover glass thickness (1-6mm); Waterproof, Anti-Glare;
6. High resolution industrial LCD panel.
A+ quality LED backlight panels.
High brightness 500nit-1500nit LED backlights enhancements (Customized).
Stable operation with long working life,more than 50,000 hours.
7. High efficience for heat dissipation design, Aluminun alloy enclosure and high strength cold rolled shell.
Sealed bezel and True flat are more efficient for water resistance. display can operate in extensive temperatures -20°-75°.
VARIOUS SIZES FOR SQUARE VIEW DIGITAL SIGNAGE
Our square digital signage support have many sizes from 17inch to 44.9inch.
Popular Applications
Digital signage is a sub-segment of signage. Digital signs use technologies such as LCD, LED and Projection to display content such as digital images, video, streaming media, and information. They can be used in public spaces, transportation systems, museums, stadiums, retail stores, hotels, restaurants, and corporate buildings etc, to provide wayfinding, exhibitions, marketing and outdoor advertising.
OEM/ODM Screen Customization
- High-light screen: default 400cd/mi,can customize <1500cd/m
- Photosensitive head: Customize the screen brightness automatically based on ambient lightAll perspective: standard 160°，178°wVA customized.
- Touch screen:lndustrial Monitor,Resistive touch screen,Capacitive touch screen,IR touch screenHigh resolution screen: customize higher resolution than standard LCD screen
- Screen size: support to customized screen Others: explosion-proof，Anti glare，dust-proof,waterproof,electromagnetic screen
Other Customization
- Appearance customization: support appearance design,sample customization.Working temperature: standard -10-60，can customize -30°C-80°℃
- LOGO customization,OEM/ODM

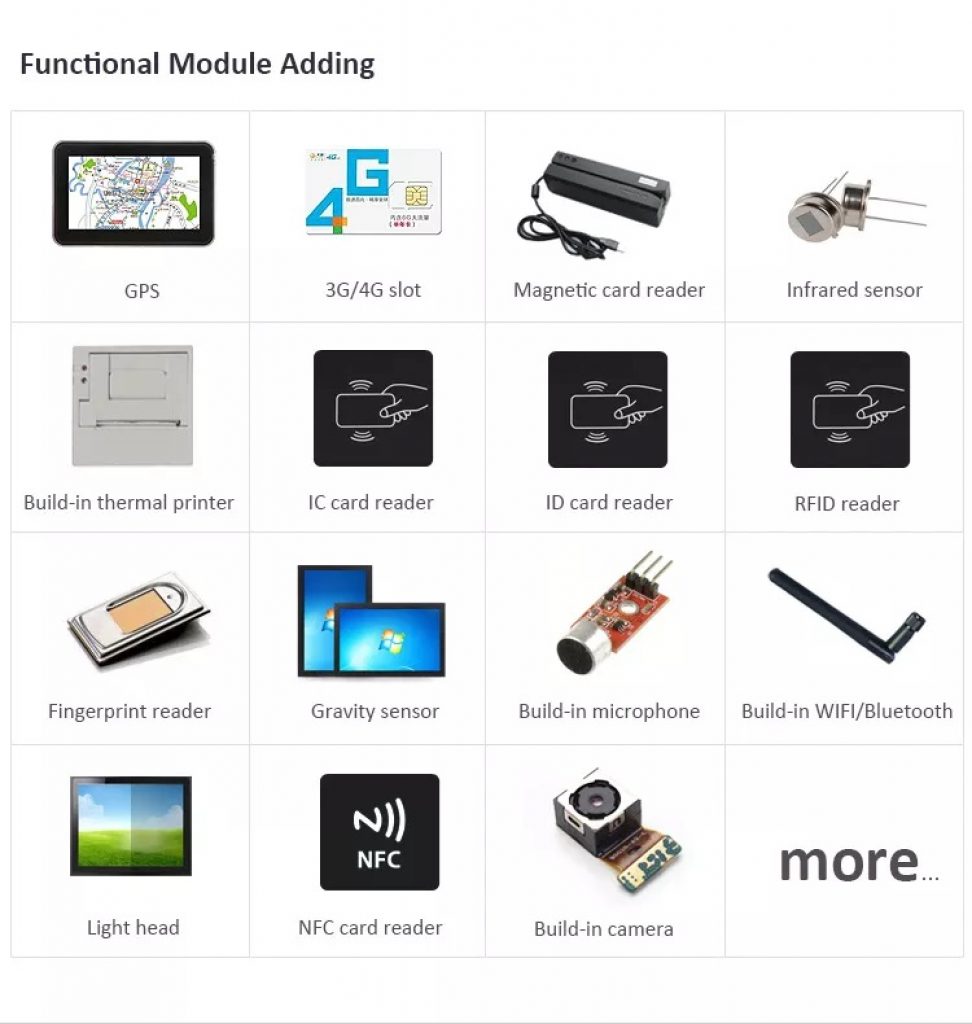

- System software customization: Compatible with all software requirementsI/O ports customization: support adding more according to demands.
- Configure customization: CPU chosen,RAM,SSD according to your demands.wide voltage: 12v-24v
- Special materials: for special occasions
- lP grade: can be customized fully – sealed dustproof waterproof
Operating system: Android , Windows or linux
Our floor standing digital signage series come with customized operating system, you can chose Android or Windows system according to your preference, with strong compatibility and stable performance, to meet all the needs of different scenarios.
⚙️ Specifications
| LCD panel( IPS screen) | |
| FVASEE 15.6 inch wall mounted touch screen computer | |
| PC | |
| CPU | Inter Celeron J1900, quad core, 2.0Ghz, fanless( Core i3, Core i5 optional) |
| Memory | 2GB DDR3, ( Max. 16G) |
| Hard Drive Capacity | 32G SSD or 320G HDD |
| Hard Drive Optional | SSD: 32GB,64GB,128GB,256GB |
| HDD: 320GB,500GB,1TB | |
| Network | 1×Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI optional |
| I/O Interface | 1xHDMI/VGA/LAN, 4x USB/Audio Out/Power DC |
| Opetation System | Preinstall test version Windows 7/8/10,Linux |
| Image Format | Support BMP、JPEG、PNG、GIF |
| LCD panel | |
| Panel size | 15.6 Inch, 21inch |
| Resolution | 1920x1080 |
| Brightness (cd/m²) | 250 cd/m2 |
| Response time | 15ms |
| Contrast ratio | 800:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Touch panel | |
| Touch Type | 10 points projective Capacitive touch optional |
| Touch Interface | USB |
| Response time | <8ms |
| Luminousness | 75-85% |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤18W |
| Operating Environment | |
| Temperature range | operating: -10 to 60°C, storage :-20 to 70°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Accessories | Power adapter, Wifi antenna |
| Other | |

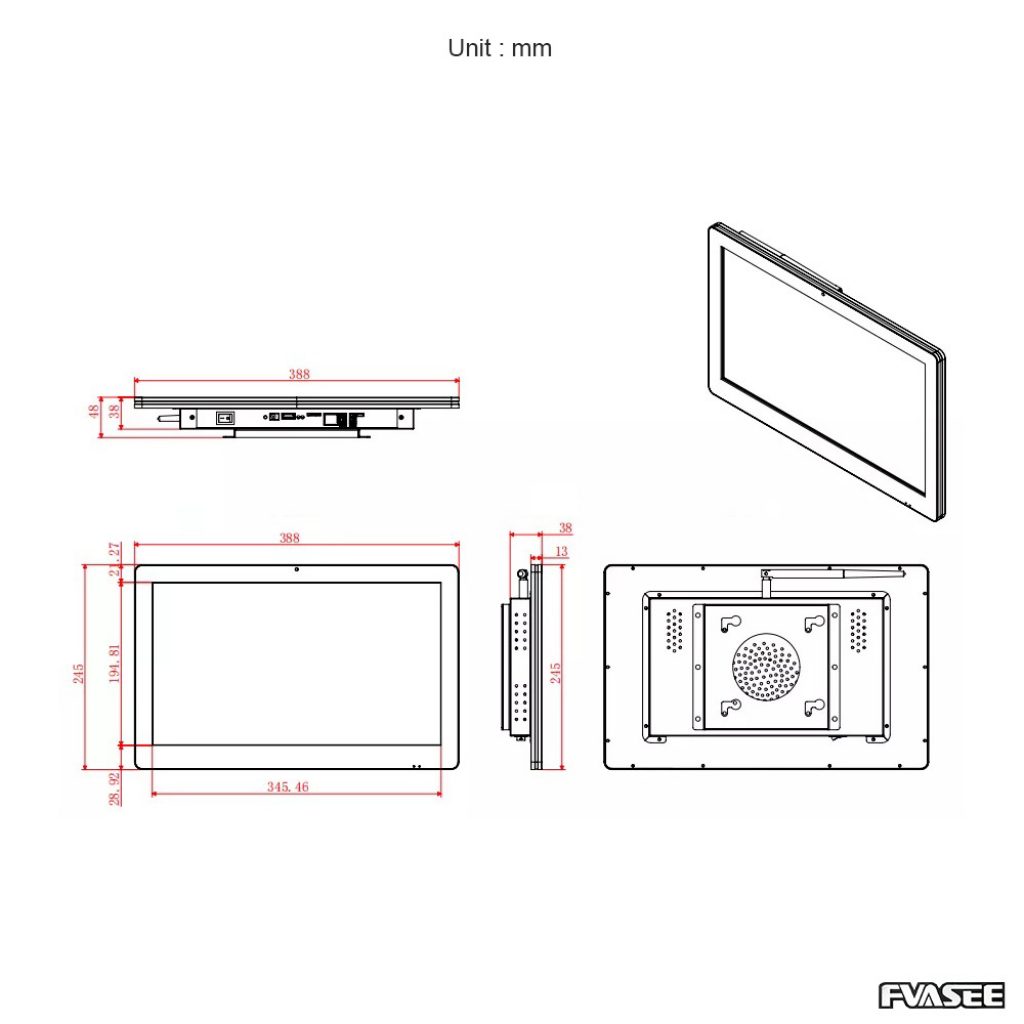

| Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm |
| 2) provide Floor standing to support the PC | |
| Certification | CE, FCC，ROHS |
| Warranty | 1 year warranty |
🤝 Supports
Downloads
FAQ
1.Q:I haven't done business with you before,how can i trust your company?
A: We are a 11-year OEM/ODM factory for digital touch system products.
what's more,we've got quite a lot authority certificates,for example,CE,CCC,UL,RoHS, ISO9001, ISO14001 certificates.
2. Q:what's the shipment terms and delivery time of your company?
A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly,
the shipment time is 3-8 working days after delivery.
For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and
Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.
3.Q:How long is the warranty time for your products?
A:We can offer 100% guarantee on our product. Our officially promised warranty time is one whole year after delivery at best.
4.Q: What are your advantages?
A: 1) We specialize in the research, production and sales ,so our price is reasonable and our service is professional .
2)10 fingers can write simultaneously on our IR touch screen display, built-in OPS PC, and free whiteboard software,
at the same time, owns CE ISO9001 ISO14001 3C CE certificates etc.
3)Low defectives and timely service. The defectives of our products seldom appear ,
if quality problem, we give spare part or new replacement free of charge.
5.Q:I would like to ask you if it's possible to have my logo on the product.
A:We hope you know that our company Fvasee perfectly support customized logo service. But, we also
hope you know that it's an extra-service,so a little bit extra service fee is needed.
