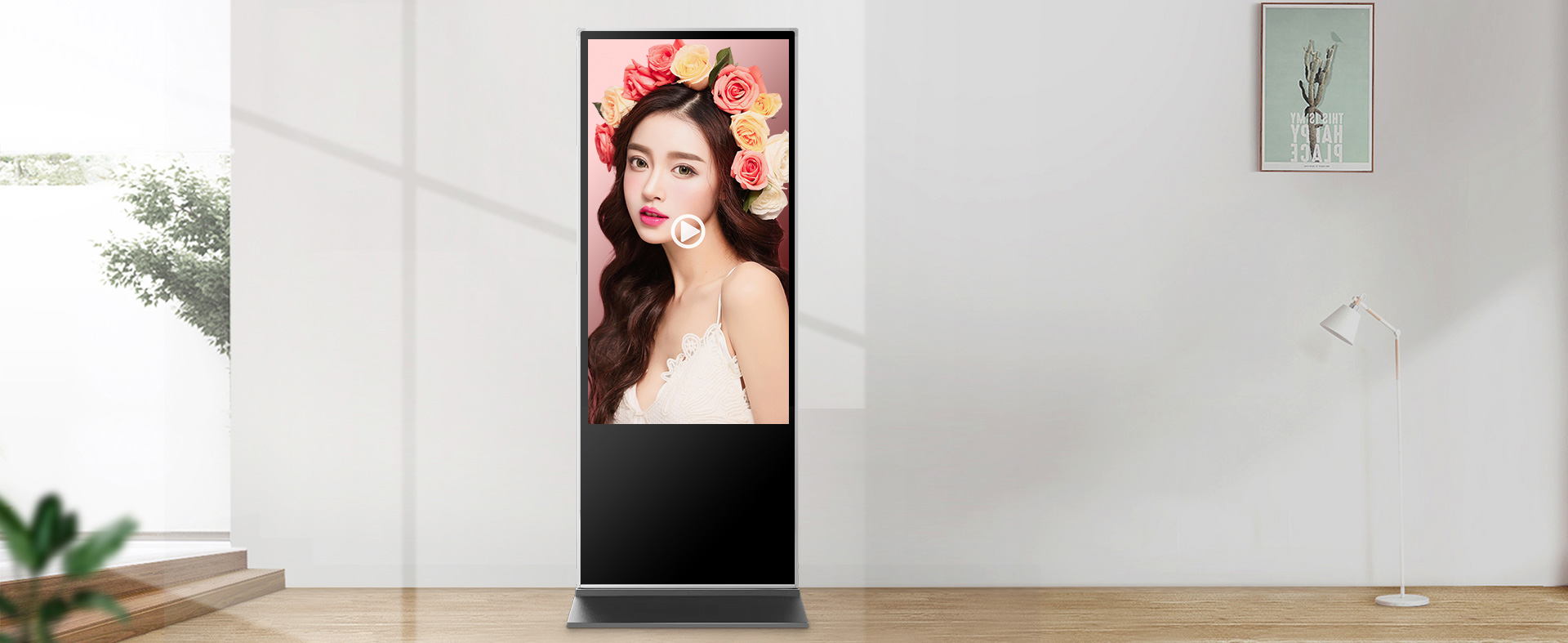

Capacitive floor standing touch screen display
- A+ HD 1080p original screen
- Ultra-thin aluminun profile housing
- Public area promotion display
- Floor Standing Digital Signage
- 7*24 Uninterrupted enjoyment
Place of Origin: Shenzhen, China
Brand Name: FVASEE
Certification: CCC,FCC,CB,CE,ROHS,ISO9001,etc.
Model Number: HS-ZAFC
Minimum Order Quantity: 1 Piece
Price: $419.00 – $3999.00
Packaging Details: high quality 3cm thickness honeycomb box (air shipment standard)
Delivery Time: Shipped in 3 days after payment
Payment Terms: L/C, D/A, T/T, Western Union, etc.
Supply Ability: 2000 Piece/Pieces per Week
Related Products
FVASEE HS-ZAFC
Floor Standing Digital Signage
High definition picture perfect quality, Explosion-proof glass protects the LCD screen for public use, High-fidelity quality sound, Easy 178 degrees viewing anglesFVASEE HS-ZAFC
Floor Standing Digital Signage
High definition picture perfect quality, Explosion-proof glass protects the LCD screen for public use, High-fidelity quality sound, Easy 178 degrees viewing angles1, Different designed enclosures can be customized exactly according to client requirements;
2, Appearance shape, structure, size, configuration, and border color can be customized;
3, Right angle series and rounded series optional;
4, Installations: wall mounted and floor standing optional; This is the floor standing style;
5, Built-in high transparent tempered glass (2-6 mm ), perfectly integrated into all kinds of applications, as protection layer to prevent lcd/led panel being broken or distorted;
6, Applications: Shopping mall, exhibition halls, hotels, restaurant, chain stores, airport, information center, end user terminals and many other places.
Default Android Solutions:
CPU 64-bit 4 cores, main frequency 1.5GHZ, 1GB DDR and 8 GB eMMC RJ45,
Internet: 1*10/100M Ethernet ; RJ45
WIFI: Wi-Fi with antenna, 802.11 1×1 BGN+BT
Board Interfaces: USBX2,TF Reader X1,RJ45 X1,HDMI-INX1 (option, if needs)
PC Built-in Option: Usually Intel J1900/ I3 /I5 CPU, 4G memory, 120G SSD, Wi-Fi (Options: Chipset Intel HM76/ H81/H110 )
Touchscreen Options:
Infrared technology Infrared mutlit touch, finger and gloved hand, or any opaque objects
Capacitive techologyCapacitive multi touch points, Finger touch
Remote Control Terminal software
The default installation the publicing software into the unit/playback terminal in English lanuguage
License for Serverthe console to be the: computer server, which need to the License if needs
FeaturesSupport all format files of Videos & Audios. Support loop, timing
Insert picture, and playback modes, multipe screens (2/4 screens) subtitles …

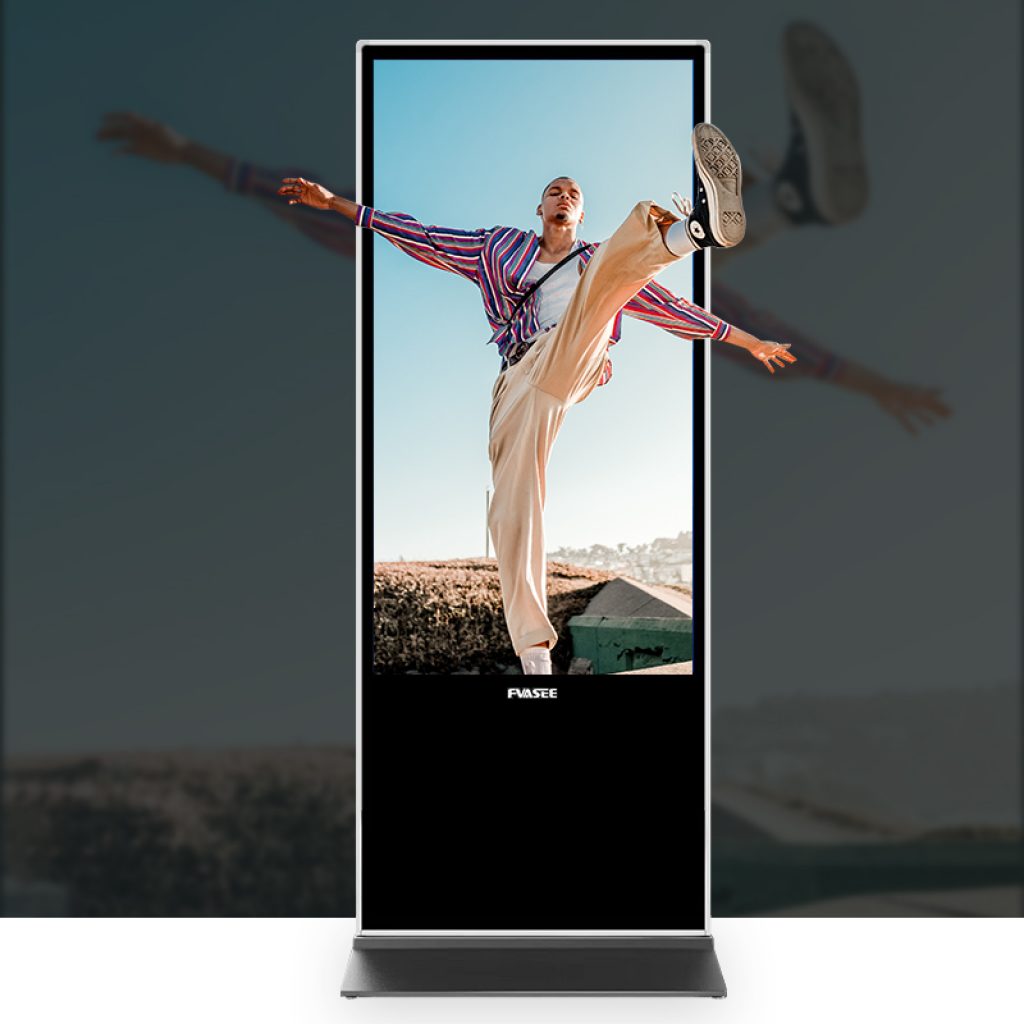

1080P HD IPS display
1920*1080P HD resolution, high brightness, 178 degree wide viewing angle. With IPS display, the screen in the kiosk can be clearly displayed at various angles, giving you a different visual enjoyment.

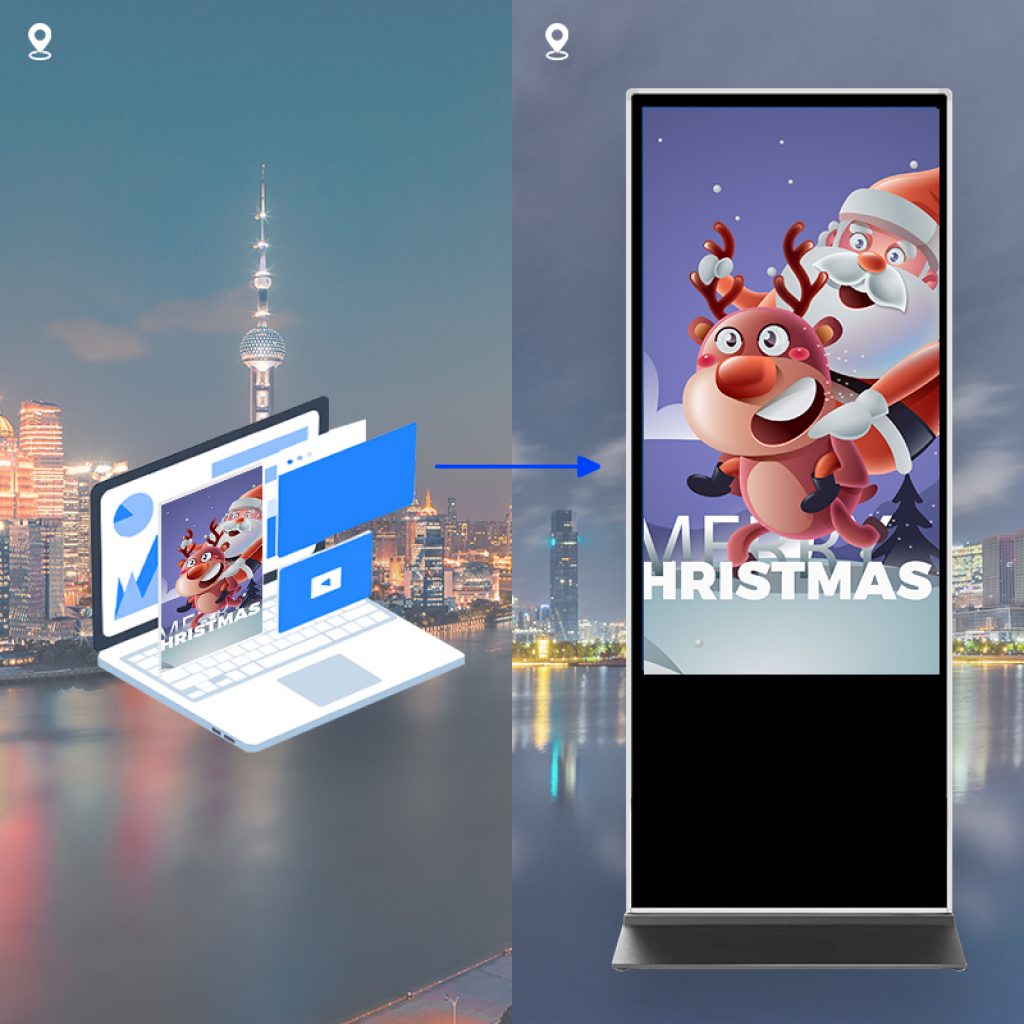

Remote publishing
One medium controls all terminals The Android/Windows version has its own messaging system, which supports remote release of mobile phones and computersInfrared & Capacitive Touch (Optional)

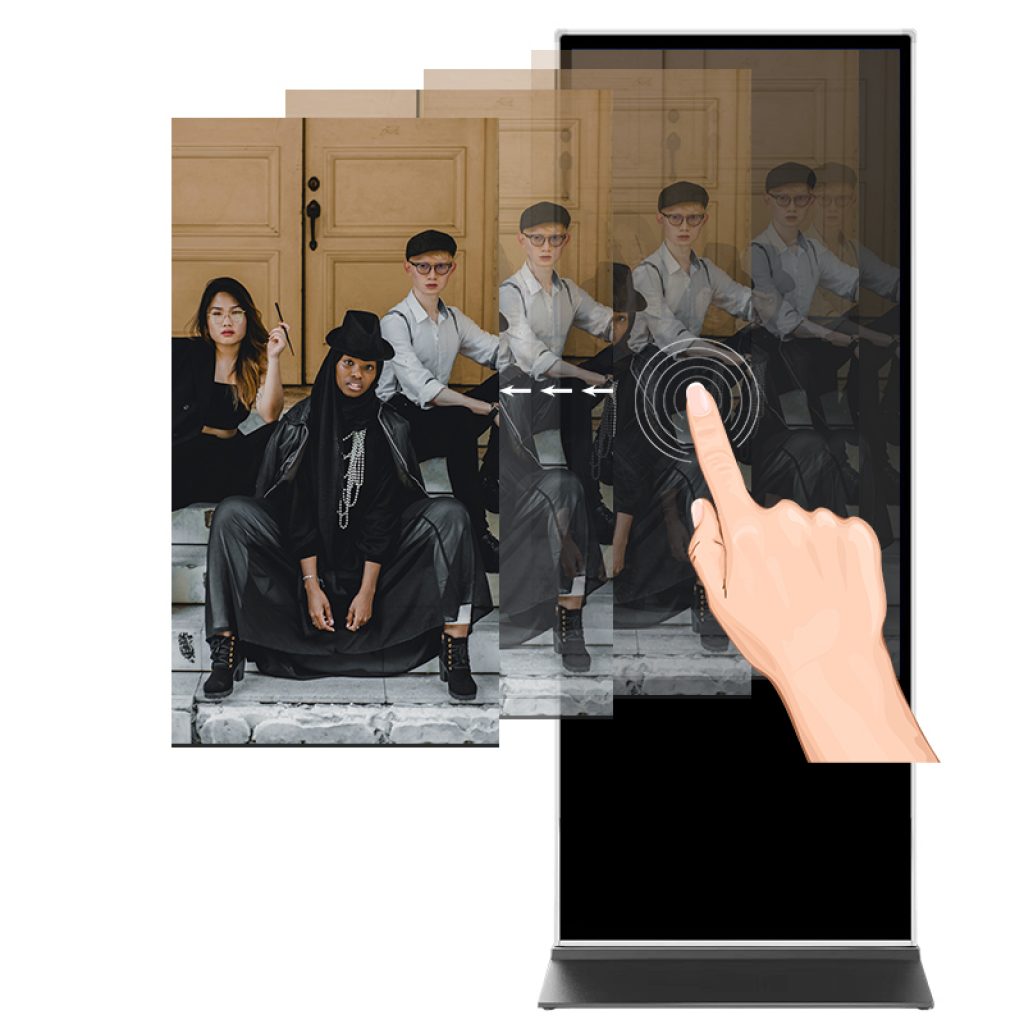

This floor standing display supports multi-point infrared, capacitive touch, multiple people can operate on the screen at the same time, fast and sensitive response without delay, with our touch screen display, you’ll get comfortable touch experience.

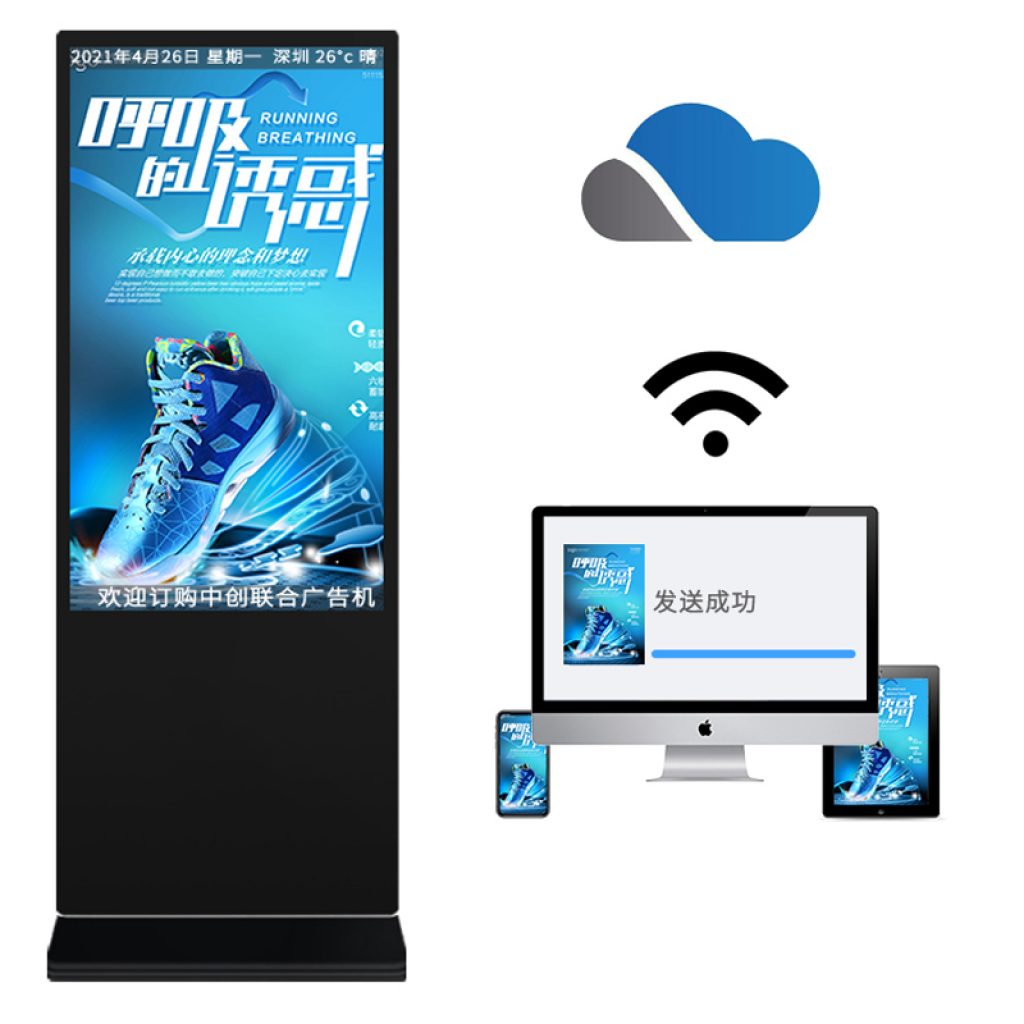

WIFI connection,remote control

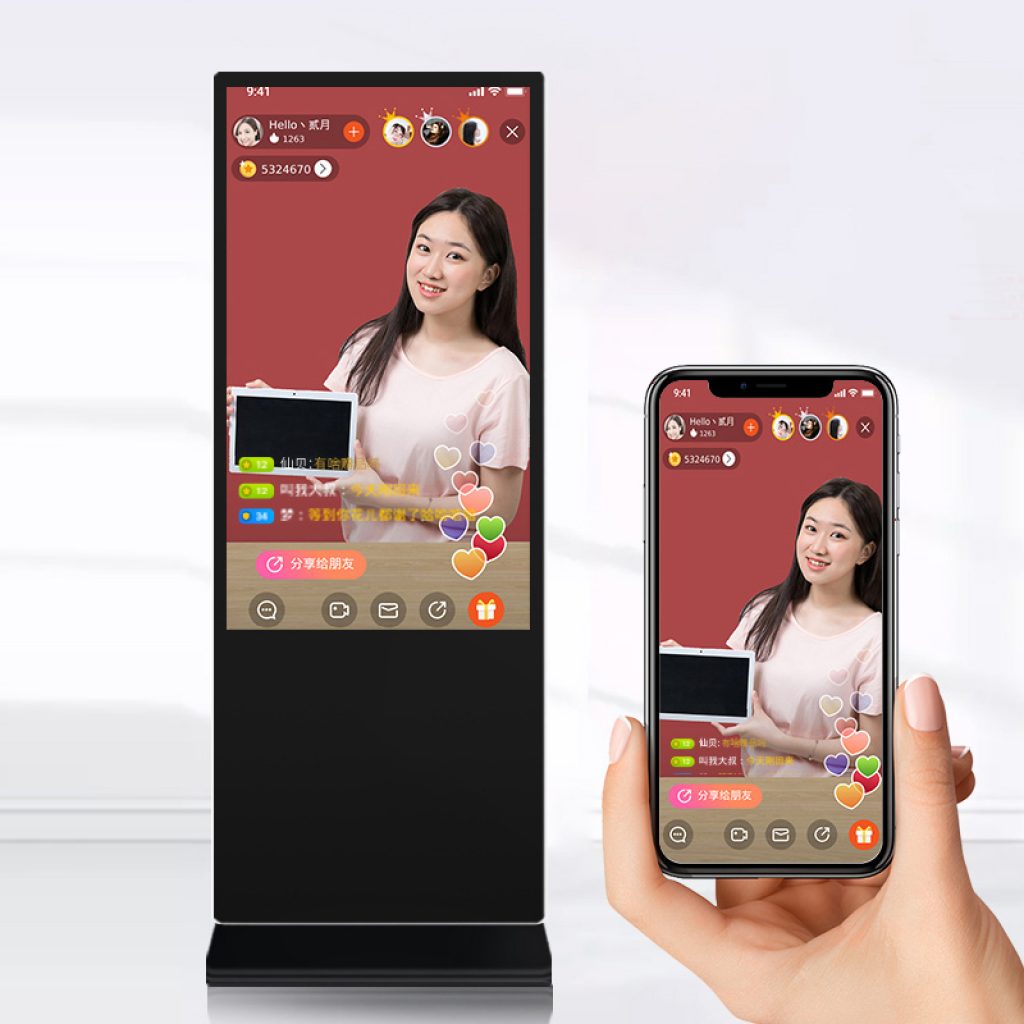

Ethernet,WIFI,(3G,4G and 5G),you can choose any one to connect the computer,publish advertisement and program management in long rangeScreencast
The touch standing advertising machine supports live screen projection, realizing pause, page turning, reverse control of the mobile phone by the advertising machine, and interaction through the large screen.
⚙️ Specifications
| Product Configuration | 42/43inch | 49/50inch | 55inch | 65inch |
| External Dimension(mm) | 1795*595*32 | 1842*665*32 | 1929*750*32 | 2039*869*32 |
| External Dimension(mm) Touch | 1795*529*40 | 1795*595*40 | 1929*758*40 | 2039*871*40 |
| Active Area(mm) | 941*529 | 1073*604 | 1209*750 | 1428*803 |
| Net Weight(KG) | 37 | 42 | 49 | 59 |
| Net Weight(KG) Touch | 38 | 43 | 50 | 60 |
| Contrast | 1200:1 | |||
| Power(W) | ≤280W | |||
| Brightness | ≥350cd/m2 | |||
| Shell material | Tempered glass + Aluminum frame + Metal plate cover | |||
| Surface material | Tempered glass | |||
| LCD | Backlight | |||
| Resolution ratio | 1920*1080 | |||
| Port | Optional with the mainboard configuration | |||
| Voltage(V) | AC110-220V | |||
| Package | Strong bearing force carton | |||
🤝 Supports
Downloads
FAQ
1.Q:I haven't done business with you before,how can i trust your company?
A: We are a 11-year OEM/ODM factory for digital touch system products.
what's more,we've got quite a lot authority certificates,for example,CE,CCC,UL,RoHS, ISO9001, ISO14001 certificates.
2. Q:what's the shipment terms and delivery time of your company?
A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly,
the shipment time is 3-8 working days after delivery.
For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and
Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.
3.Q:How long is the warranty time for your products?
A:We can offer 100% guarantee on our product. Our officially promised warranty time is one whole year after delivery at best.
4.Q: What are your advantages?
A: 1) We specialize in the research, production and sales ,so our price is reasonable and our service is professional .
2)10 fingers can write simultaneously on our IR touch screen display, built-in OPS PC, and free whiteboard software,
at the same time, owns CE ISO9001 ISO14001 3C CE certificates etc.
3)Low defectives and timely service. The defectives of our products seldom appear ,
if quality problem, we give spare part or new replacement free of charge.
5.Q:I would like to ask you if it's possible to have my logo on the product.
A:We hope you know that our company Fvasee perfectly support customized logo service. But, we also
hope you know that it's an extra-service,so a little bit extra service fee is needed.
